250°C high TG 700C 58mm Deep clincher carbon rims

Type:27mm Wide 58mm clincher tubeless carbon rims

Newest style 700C Clincher lightweight bicycle rims

58mm Deep model bicycle carbon wheels

Tubeless ready 27mm wider U Shape design

High quality Road bike clincher rims manufacturer

250°C high TG resin system

Made of Full Toray T700&T800

  • Item NO.:

    OS-TR/R58
  • Product Origin:

    China
  • Color:

    3K/UD/12K/1K Matte/glossy
  • Lead Time:

    A week
  • Order(MOQ):

    1

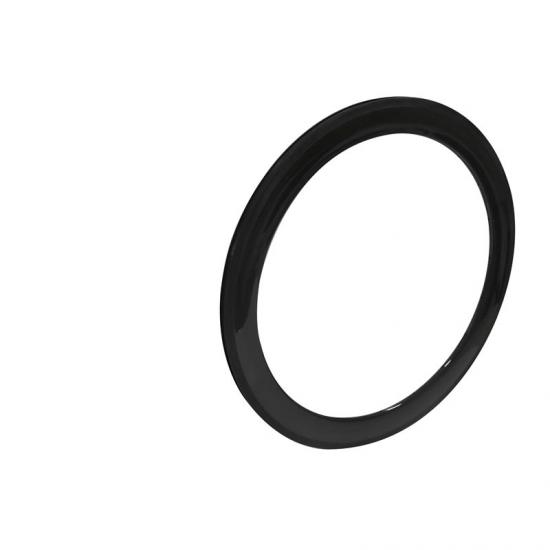

Product Model:700C Clincher bike rims 58mm Deep carbon clincher rim

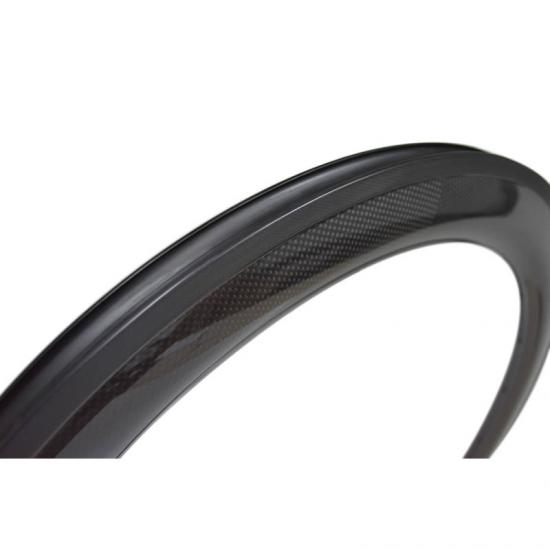

58mm Deep clincher rim,newest style U shape 27mm wide carbon rims, profile makes this clincher rims pretty stiff.better aerodynamic performance,durable and strength.

27mm wide tubeless rims made of Full carbon Toray T700, 250°C high TG resin stystem,high TG brake surface.

UD appearance to be more resistant to high temperature.Tubeless ready design,easy for tire mount.

This 58mm Deep carbon wheels have classical clincher and tubeless styles.

Our Factory offer high quality carbon clincher rims with competitive price,fast delivery.

58mm Deep carbon rim
700C carbon wheel
27mm wide tubeless rim
58mm clincher rim


Features:

1.Newest model for 58mm Deep 27mm wide clincher carbon rims.

2.250°C High TG resin temperature with 250°C brake track from braking in road bicycle clincher wheels.

2.Full Toray T700 & T800 carbon fiber, Super lightweight rims,best strength to weight ratio with no expense spared.
3.This 58mm Deep clincher tubeless rims have faster braking heat elimination.

4.27mm wide U sahpe design,for better aerodynamics and stiffness.new bead lock system,better tire holding,prevent air leaking.

5.We offer decal and painting service for OEM your brands.

6.We can customized Different patterns of brake surface .

7.Strong technical force and fast delivery.

7. 5 years warranty


Specification:

Model

TR58C-27

R58C-27

Size

700C

700C

Sectional Drawing

Material

Toray T700 & T800

Toray T700 & T800

Depth

58mm

58mm

Wide

27mm

27mm

Weight

545+/-15g

555+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

ERD

524mm

524mm

Assembly Hole Dia.

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

Ultimate Strength

>300kg

>300kg

Torsion Strength

>50kg

>50kg

Tire Size Recommended

700*25-28c

700*25-28c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

Factory carbon rim


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
