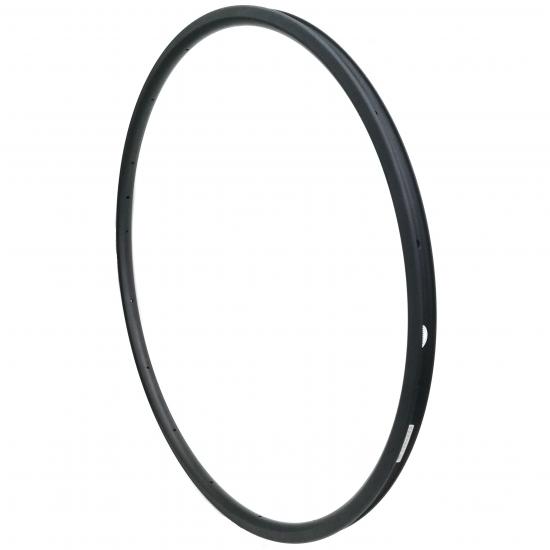

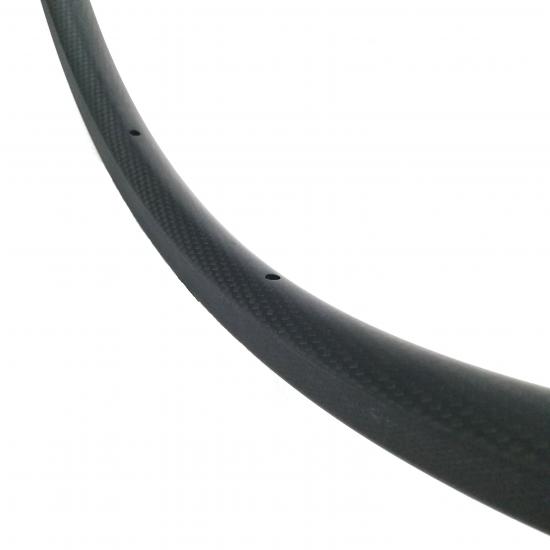

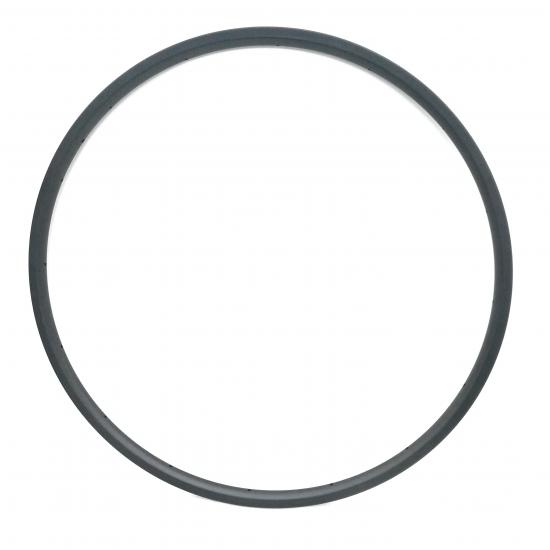

20mm Depth carbon bike clincher rim 700C

Type:20mm Deep 700C clincher carbon rim 21mm wide

Material: Toray T700

Appearance:3K/UD/12K or customized
Brake track:Basalt,Disc brake

250°C high TG braking temperature

700C carbon road bike clincher Rims

V shape design

High quality bicycle rims manufacturer

  • Item NO.:

    OS-20C
  • Product Origin:

    China
  • Color:

    3K/UD/12K/1K Matte/glossy
  • Lead Time:

    A week
  • Order(MOQ):

    1

Product Model:20mm Deep 700C 23mm wide carbon rims

Very lightweight 20mm Deep clincher carbon rims with V shape,better aerodynamics and sitffness.

This 23mm wide carbon rims made of Toray T700 and T800 carbon fiber.Can be used on rim or disc brakes.

The 20mm Depth 21mm wide carbon road bike rims use of high-temperature brake edge material, can tolerate high temperature from braking.

We offer High quality road bike 700C carbon rims with the wholesale price.




Features:

1.material usage:OSFC carbon rims made of Full Toray T700 & T800 carbon fiber.

Use high TG resin system,can tolerate max 250°C high temperature from braking.

2.OSFC bicycle carbon rims is not only lightweight but also strong,Strictly implement various high-quality standards in the production proces.
3.V shape design,better aerodynamics and stiffness.

4.OSFC Clincher carbon rims use basalt brake track,high temperature resistance,brake system is important for riding,more safety for cyclist.

5.Innovative one-piece molding,rim flange incl circle titanium,stronger and stabilized structure.

6.We have not MOQ limit,sample order are avaliable,we also can mixed product to order.

7.We offer decal and painting service for OEM your brands.

8.We can customized Different patterns of brake surface .

9.We are many well-known brand suppliers.

10.5 years warranty


Specification:

Model

R20C-23

Size

700C

Sectional Drawing

Material

Toray T700 & T800

Depth

20mm

Wide

23mm

Weight

420+/-15g

Appearance

3K/UD OrCustomized

Spokes holes

18-36#Customized

ERD

600mm

Assembly Hole Dia.

7.6mm

Spokes hole Dia

4.2mm

Valve hole Dia.

6.6mm

Flatness

<0.25mm

Roundness

<0.5mm

Max Spoke Tension

>280kg

Ultimate Strength

>85kg

Torsion Strength

>50kg

Max Tire Pressure

125psi/8.6bar


Factory production manufacture

customication carbon wheel


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
